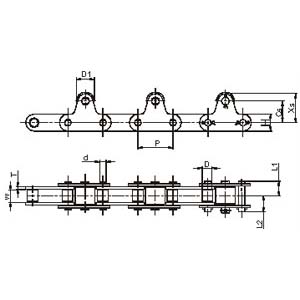

Accumlator Top Roller Chains
Intl. Ref. No. Diamond Chain No. Pitch (P) Width between Inner Plates (W) (Min) Roller Dia Pin (Max) Link Plate (Max) Cs Xs Material
D D1 d L1 L2 H T Steel Plastic
C2040 A 08A01 TR01 25.40 7.85 7.92 15.88 3.97 8.25 9.95 11.66 1.50 15.00 21.00 Ö Ö
C2050 A 10201 TR01 31.75 9.40 10.16 19.05 5.08 10.30 12.00 14.58 2.00 19.00 26.50 Ö Ö
C2060 A 12101 TR01 38.10 12.58 11.91 22.23 5.94 14.55 16.55 18.06 3.15 23.00 31.60 Ö Ö
C2080 A 16101 TR01 50.80 15.75 15.88 28.58 7.92 18.30 20.90 24.05 4.00 29.00 40.50 Ö Ö
C2100 A 20101 TR01 63.50 18.90 19.05 39.67 9.53 21.80 24.50 29.26 4.70 35.40 49.70 Ö Ö

Note: Chains with large rollers are also available on request

Note : In process of making the product better the actual product may differ in design From the actual displayed product.
