 Universal joints are engineered to fill the need for a rugged, compact
joint providing for higest load carring capacites and maximum service and
safety over long periods of time. Highest quality alloy steels carefully
selected by each perticular part, are acurectly machined, heat treated for
maximum strength and durability, and precision ground, assuring close
fits-PRECISE, COMPACT, STRONG, SMOOTH RUNNING, LONG LIFE.
UNIVERSAL JOINTS are carried off-shelf in pilot bores and sutiable to fit
standard shiftings.
MOUNTING INSTRUCTIONS: For most efficient operations it is recommended that
these universal joints operate in as near a straight line as possible. They can
however operate at angles upto 37 degrees, at slow speeds and light loads.

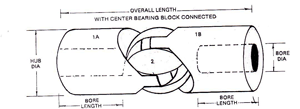

1 A and 1 B - YOKES - Highest quality along steel, heat treated for maximum
wear and strength. Yokes can be easly bored or altered. Bearing surface
accuratly ground for smooth operation and O.D. ground for true running.
Center Bearing Blocks-Hardened and precision ground for long wear, with recess
for self-locking. |
|
| S.No. |
Hub Dia |
Suitable For Bore Dia |
Bore Length |
Overall Length |
Approx Weight in Lbs |
Hub Diameter
|
Max Horsepower @.100 Rpm |
Breaking Load * |
| AU-1 |
3/8" |
3/16" |
43/64" |
1 3/4" |
.05 |
3/8 |
1/12 |
100 |
| AU-2 |
1/2 |
1/4 |
47/64 |
2 |
.09 |
1/2 |
1/3 |
400 |
| AU-3 |
5/8 |
5/16 |
51/64 |
2 1/4 |
.17 |
5/8 |
2/3 |
830 |
| AU-4 |
3/4 |
3/8 |
61/64 |
2 11/16 |
.30 |
3/4 |
1 1/4 |
1600 |
| AU-5 |
7/8 |
7/16 |
1 3/64 |
3
|
.45 |
7/8 |
1 1/2 |
1850 |
| AU-6 |
1 |
1/2 |
1 11/64 |
3 3/8 |
.67 |
1 |
2 1/4 |
3000 |
| AU-7 |
1 1/4 |
5/8 |
1 15/64 |
3 3/4 |
1.15 |
1 1/4 |
4 |
5200 |
| AU-8 |
1 1/2 |
3/4 |
1 11/32 |
4 1/4 |
1.85 |
1 1/2 |
6 1/2 |
8400 |
| AU-9 |
1 3/4 |
7/8 |
1 19/32 |
5
|
2.90 |
1 3/4 |
9 1/2 |
12,500 |
| AU-10 |
2 |
1 |
1 21/32 |
5 7/16 |
4.00 |
2 |
16 |
22,000 |
| AU-11 |
2 1/2 |
1 1/4 |
2 7/32 |
7 |
8.00 |
2 1/2 |
25 |
35,000 |
| AU-12 |
3 |
1 1/2 |
2 31/32 |
9 |
15.25 |
3 |
40 |
55,000 |
| AU-13 |
4 |
2 |
3 21/64 |
10 5/8 |
31.31 |
4 |
100 |
132,000 |
|
| * Ultimate Breaking Load Static(No Velocity)Torque Inch Lbs |
Note : In process of making the product better the actual product may differ in design From the actual displayed product.
|
