Standard Roller Double Pitch Conveyor - American Series

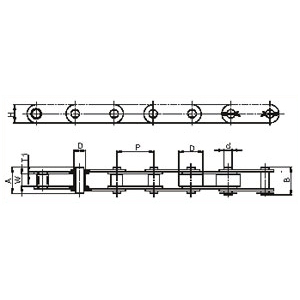

Intl. Ref No.  Diamond Chain No. Pitch (P)  Width between Inner Plates (W) (Min)  Roller Dia* (D) (Max)  Pin Dia (d) (Max)  Plate Height   Plate Thickness  Width Over  Bearing Pin (A) (Max) Width Over Joint Fastener (B) (Max)  Tensile Stremgth (Kgf) (Min)  (H1) (Max)  IP (T1)  C2040 TD 08A A 01 25.40 7.85 TD 7.92 3.96 11.66 1.50 17.80 21.70 1440  C2042 TD 08A A 02 TD 15.88 C2050 A 102 01 31.75 9.40 10.16 5.08 14.58 2.00 21.80 25.90 2270 C2052 A 102 02 19.05  C2060 TD A 121 01 38.10 12.58 TD 11.91 5.94 18.06 2.39 26.90 31.50 3240  C2062 TD A 02 121 TD 22.23 C2060H A 122 01 38.10 12.58 11.91 5.94 18.06 3.15 31.20 35.80 3240 C2062H A 122 02 22.23  C2080 TD A 161 01 50.80 15.75 TD 15.88 7.92 24.05 3.15 33.50 38.90 5780  C2082 TD A 02 161 TD 28.58 C2080H A 162 01 50.80 15.75 15.88 7.92 24.05 4.00 38.00 43.40 5780 C2082H A 162 02 28.58  C2100 TD A 201 01 63.50 18.90 TD 19.05 9.53 29.26 4.00 41.10 47.20 9030  C2102 TD A 02 201 TD 39.67 C2100H A 202 01 63.50 18.90 19.05 9.53 29.26 4.70 43.40 46.70 9030 C2102H A 202 02 39.67  C2120 TD A 241 01 76.20 25.22 TD 22.23 11.10 36.20 4.70 50.80 57.40 12950  C2122 TD A 02 241 TD 44.45 C2120H A 242 01 76.20 25.22 22.23 11.10 36.20 5.56 55.10 61.70 12950 C2122H A 242 02 44.45  C2160 TD A 321 01 101.60 31.55 TD 28.58 14.27 48.26 5.56 65.50 73.40 23130  C2162 TD A 02 321 TD 57.15 C2160H A 322 01 101.60 31.55 28.58 14.27 48.26 7.14 70.00 77.90 23120 C2162H A 322 02 57.15

Note : In process of making the product better the actual product may differ in design From the actual displayed product.
