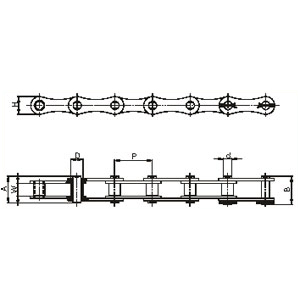

Standard Roller Double Pitch Drive - American & European Series
American Series

Intl. Ref. No. Diamond Chain No. Pitch (P) Width Betwwen Inner Plates (W) (Min) Roller Dia (D) (Max) Pin Dia (D) (Max) Plate Height (H) (Max) Width Over Bearing Pin (A) (Max) Width Over Joint Fastener (B) (Max) Tensile Strength (Kgf) (Min)
A2040 E08A01 25.40 7.85 7.92 3.96 11.65 17.80 21.70 1440
A2050 E10201 31.75 9.40 10.16 5.08 13.90 21.80 25.90 2270
A2060 E12101 38.10 12.58 11.91 5.94 18.10 26.90 31.50 3240
A2080 E16101 50.80 15.75 15.88 7.92 24.10 33.50 38.90 5780
A2100 E 20101 63.50 18.90 19.05 9.53 29.02 41.10 47.20 9030
A2120 E 24101 76.20 25.22 22.23 11.10 34.82 50.80 57.40 12950

European Series

208B E08301 25.40 7.75 8.51 4.45 11.65 17.00 20.90 1840
210B E10101 31.75 9.65 10.16 5.08 13.90 19.60 23.70 2290
212B E12001 38.10 11.68 12.07 5.72 15.30 22.70 27.30 2960
216B E16001 50.80 17.02 15.88 8.27 20.65 36.10 41.50 6120
220B E20001 63.50 19.56 19.05 10.19 26.42 43.20 49.30 9690
224B E24001 76.20 25.40 25.40 14.63 33.40 53.40 60.00 16310
228B E28001 88.90 30.99 27.94 15.90 37.00 65.10 72.50 20390
232B E32001 101.60 30.99 29.21 17.81 42.20 67.40 75.30 25500

Note : In process of making the product better the actual product may differ in design From the actual displayed product.
