Diamond Max European Series

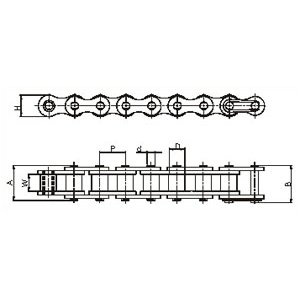

Single Strand Intl. Ref. No. Diamond Max Chain No. Pitch (P) Width Betwwen Inner Plates (W) (Min) Roller Dia (D) (Max) Plate Height (H) (Max)) Bearing Pin Dia (d) (Max) Width Over Bearing Pin (A) (Max) Width Over Joint Fastener (B) (Max) Diamond Max Tensile Strength (Kgf) (Min) 08B-1 Q083 01 12.70 7.75 8.51 11.81 4.45 17.00 20.90 2100 10B-1 Q101 01 15.875 9.65 10.16 14.73 5.08 19.60 23.70 2800 12B-1 Q120 01 19.05 11.68 12.07 16.13 5.72 22.70 27.30 3400 16B-1 Q160 01 25.40 17.02 15.88 21.08 8.27 36.10 41.50 7500 20B-1 Q200 01 31.75 19.56 19.05 26.42 10.19 43.20 49.30 11300 Double Strand Intl. Ref. No. Diamond Max Chain No. Pitch (P) Width Betwwen Inner Plates (W) (Min) Roller Dia (D) (Max) Plate Height (H) (Max) Bearing Pin Dia (D) (Max)) Width Over Bearing Pin (A) (Max) Width Over Joint Fastener (B) (Max) Transveres Pitch(P1) Diamond Max Tensile Strength (Kgf) (Min) 08B-2 Q083 02 12.70 7.75 8.51 11.81 4.45 31.00 34.90 13.92 3750 10B-2 Q101 02 15.875 9.65 10.16 14.73 5.08 36.20 40.30 16.59 5600 12B-2 Q120 02 19.05 11.68 12.07 16.13 5.72 42.20 46.80 19.46 6800 16B-2 Q160 02 25.40 17.02 15.88 21.08 8.27 68.00 73.40 31.88 15000 20B-2 Q200 02 31.75 19.56 19.05 26.42 10.19 79.70 85.80 36.45 22600 Triple Strand Intl. Ref. No. Diamond Max Chain No. Pitch (P) Width Betwwen Inner Plates (W) (Min) Roller Dia (D) (Max) Plate Height (H) (Max) Bearing Pin Dia (D) (Max)) Width Over Bearing Pin (A) (Max) Width Over Joint Fastener (B) (Max) Transveres Pitch(P1) Diamond Max Tensile Strength (Kgf) (Min) 08B-3 Q 083 03 12.70 7.75 8.51 11.81 4.45 44.90 48.80 13.92 5590 10B-3 Q101 03 15.875 9.65 10.16 14.73 5.08 52.80 56.90 16.59 8400 12B-3 Q120 03 19.05 11.68 12.07 16.13 5.72 61.70 66.30 19.46 10200 16B-3 Q160 03 25.40 17.02 15.88 21.08 8.27 99.90 105.30 31.88 22500 20B-3 Q200 03 31.75 19.56 19.05 26.42 10.19 116.10 122.10 36.45 33900

Note : In process of making the product better the actual product may differ in design From the actual displayed product.
