Standard Roller Hi Life American Heavy Series Chain

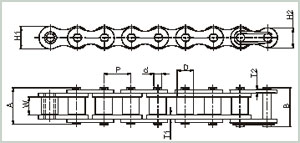

Single Strand   Intl. Ref No. Diamond Chain No. Pitch (P) Width between Inner Plates (W) (Min)  Roller Dia (D) (Max)  Plate Height Plate Thickness Bearing Ring Pin Dia (d) (Max) Width Over Bearing Pin (A) (Max) Width Over Joint Fasteners(B) (Max) Tensile Strength (Kgf) (Min) IP (H1) (Max) OP (H2) (Max) IP (T1) OP (T2) 60H-1 D 12201HE01 19.05 12.58 11.91 18.00 14.88 3.15 3.15 5.96 31.20 35.80 4600 80H-1 D 16201HE02 25.40 15.75 15.88 24.10 20.80 4.00 4.00 7.94 38.00 43.40 8700 100H-1 D 20201HE02 31.75 18.90 19.05 30.10 26.00 4.70 4.70 9.54 45.40 51.50 11500 120H-1 D 24201HE02 38.10 25.23 22.23 36.20 31.20 5.56 5.56 11.11 55.10 61.70 16200 160H-1 D 32201HE01 50.80 31.55 28.57 48.20 41.60 7.14 7.14 14.29 70.00 77.90 29000 200H-1 D 40201HE01 63.50 37.85 39.67 60.30 52.00 8.80 8.80 19.85 93.10 103.30 52500

Note : In process of making the product better the actual product may differ in design From the actual displayed product.
