  Elevator Buckets
'O' Ring Chains
Automotive 'O' Ring Chains

Intl.
Ref.
No.		 Diamond
Chain
No.		 Pitch

(P)		 Width
between
Inner
Plates
(W)
(Min)		 Roller
Diameter
(D)
(Max)		 IP
height
(H1)
(Max)		 OP
height
(H2)
(Max)		 IP
Thickness
(T1)
(Max)		 OP
Thickness
(T2)
(Max)		 Width
over
bearing
Pins
(A)
(Max)		 Bearing
Pin
Diameter
(d)
(Max)		 Width
over
Joint
Fasteners
(B)
(Max)		 Tensile
strength
Kgf
(Min)

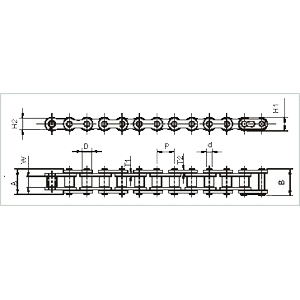

J415 OR D 087 01 12.70 5.15 7.75 10.57 10.57 1.37 1.37 15.10 4.07 16.24 1300
J428 OR D 089 01 12.70 7.95 8.51 11.56 10.57 1.58 1.50 19.00 4.50 20.30 1845
J520 OR D 105 01 15.875 6.35 10.16 14.48 13.51 2.00 2.00 20.57 5.07 22.04 2500

Other 'O' Ring Chains

Intl.
Ref.
No.		 Diamond
Chain
No.		 Pitch

(P)		 Width
between
Inner
Plates
(W)
(Min)		 Roller
Diameter
(D)
(Max)		 IP
height
(H1)
(Max)		 OP
height
(H2)
(Max)		 IP
Thickness
(T1)
(Max)		 OP
Thickness
(T2)
(Max)		 Width
over
bearing
Pins
(A)
(Max)		 Bearing
Pin
Diameter
(d)
(Max)		 Width
over
Joint
Fasteners
(B)
(Max)		 Tensile
strength
Kgf
(Min)
08B OR D 083 01 12.70 7.75 8.51 11.56 10.57 1.58 1.50 19.00 4.45 20.30 1845
10B OR D 101 01 15.875 9.65 10.16 14.48 13.51 1.58 1.58 21.94 5.06 23.53 2265

Note : In process of making the product better the actual product may differ in design From the actual displayed product.
